Description:

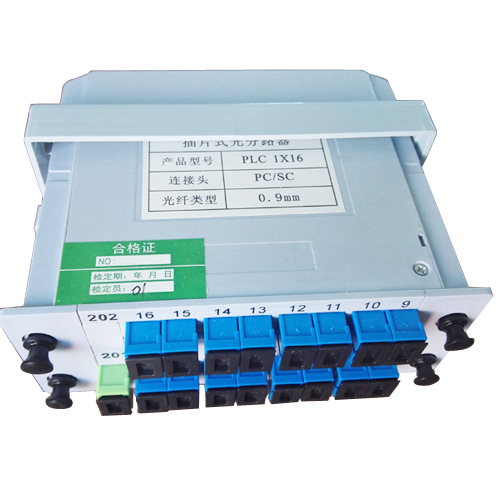

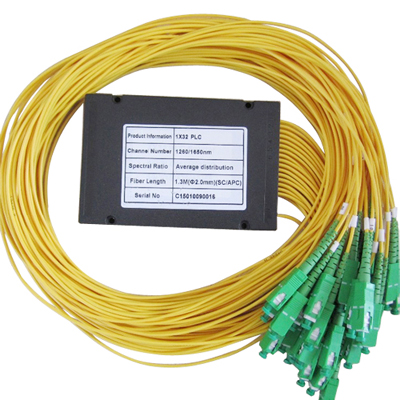

Optical power splitter is a component that splits the optical power in one optical route into a few different routes according to a certain allocation ratio.PLC 1xN Splitter is a such kind component that is based on planar light wave circuit technology, which can provide low insertion loss, low input polarization
sensitivity, excellent uniformity, and low return loss ,configuration of 1X4, 1X8, 1X16, 1X32 and 1x64 port.
Features:
Low Insertion Loss
Low PDL
Excellent Environmental & Mechanial Stability
Compliance with Telcordia GR-1221 and GR-1209
Specifications:
Parameter |
Specification |
||||||
Operating Wavelength (nm) |
1280 ~ 1650 |
||||||
Type |
1x4 |
1x8 |
1x16 |
2x16 |
1x32 |
2x32 |
1 x64 |
Insertion Loss (dB) Max.* |
< 7.3 |
< 11.0 |
< 14.0 |
< 14.3 |
< 18 |
< 18.8 |
<20 |
Uniformity (dB) Max* |
< 1.0 |
< 1.0 |
< 1.5 |
< 2.5 |
< 2.0 |
< 2.5 |
<1.0 |
PDL (dB) Max* |
< 0.3 |
< 0.3 |
< 0.4 |
< 0.4 |
< 0.45 |
< 0.45 |
< 0.1 |
Dimensions (HxWxL) (mm) |
4x4x38 |
4x4x40 |
4x5x50 |
4x7x60 |
4x7x60 |
4x7x70 |
4x7x70 |
Directivity (dB) Min* |
55 |
||||||
Return Loss (dB) Min* |
50 |
||||||
Operating Temperature (° C) |
-40 ~ +85 |
||||||
Storage Temperature (° C) |
-40 ~ +85 |
||||||
Fiber Length |
1m or custom length |
||||||
Fiber Type |
Singlemode |
||||||
Connector Type |
Custom specified |
