Item No:JA-1001/1005/1003

Product Name: LSA Disconnection Module

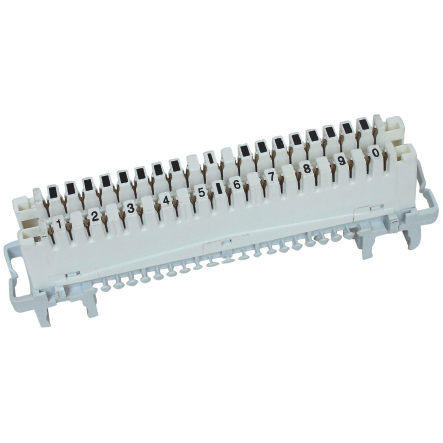

JA-1001  10 Pair LSA Disconnection Module

JA-1005  10 Pair LSA Profil Disconnection Module

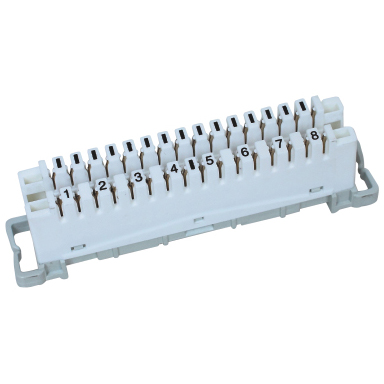

JA-1003  8  Pair LSA Disconnection Module


Technical>>

Description:

1. The module contain two piece contacts normally closed.

2. Internal diameter of wire: 0.4mm-0.65mm.
3. A: grey base, white body. B: grey base, yellow body.C: colored label attached on the body.

Material:

1.Plastic Parts: PBT-V0 UL94 or ABS.

2. Contacts Pin: 0.5mm Phosphor bronze with silver-plated.

3. Silver-plated: 30U or client request.


Size:  10 Pair: 124x21x40mm

          8  Pair: 104x21x40mm
